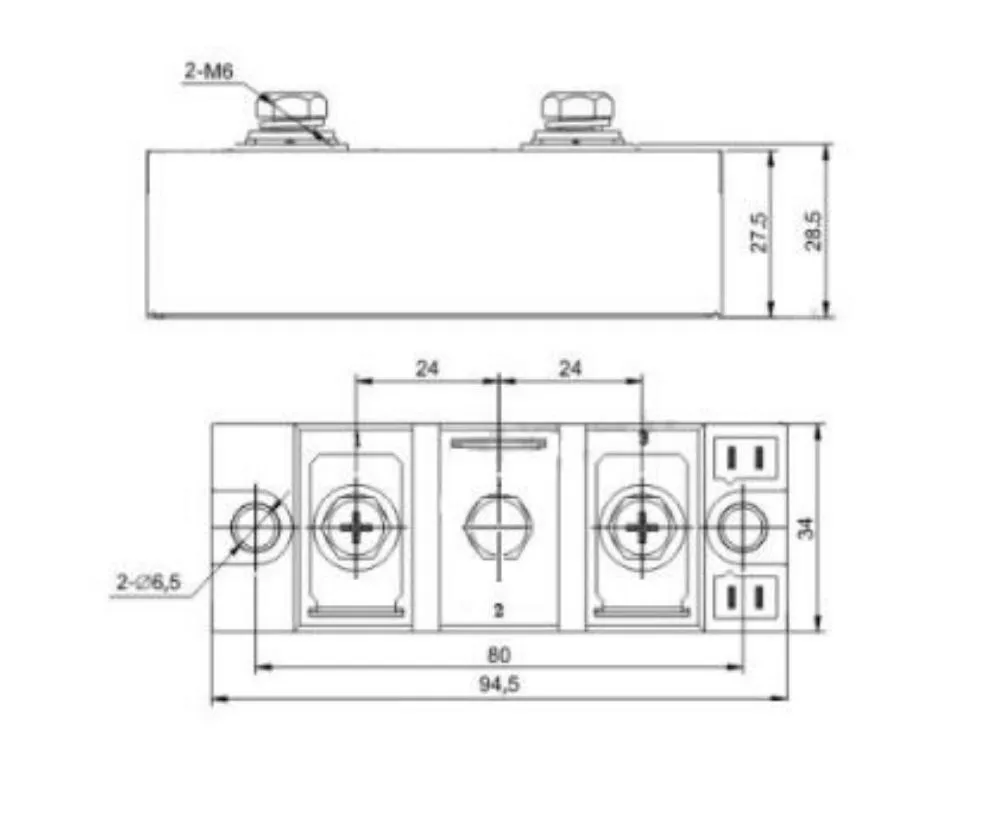

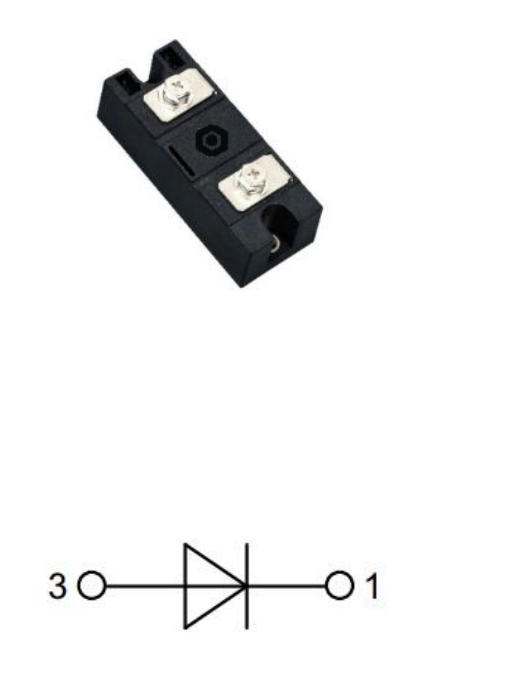

Symbol

Parameter

Test Conditions

Values

Unit

VR

Maximum D.C. Reverse Voltage

1200

V

VRRM

Maximum Repetitive Reverse Voltage

1200

V

IF(AV)

Average Forward Current

TJ= 150°C

453

A

IF(RMS)

RMS Forward Current

TJ=75°C

640

A

IFSM

max    Surge    Forward Current

t = 10ms (50Hz),sine,TJ=45°C

4800

A

t = 8.3ms (60Hz),sine,TJ=45°C

5280

t = 10ms (50Hz),sine,TJ= 150°C

4320

t = 8.3ms (60Hz),sine,TJ= 150°C

4750

I2t

I2t value for fusing

t = 10ms (50Hz),sine,TJ=45°C

115.2

2 kA s

t = 8.3ms (60Hz),sine,TJ=45°C

117.1

t = 10ms (50Hz),sine,TJ= 150°C

93.3

t = 8.3ms (60Hz),sine,TJ= 150°C

94.8

VTO

Threshold voltage

TJ= 150°C

1.16

V

rT

Slope resistance

TJ= 150°C

1.15

m Ω

Ptot

Total power dissipation

TJ=25°C

1750

W

TJ

Junction Temperature

-40 to +150

°C

TSTG

Storage Temperature Range

-40 to +125

°C
