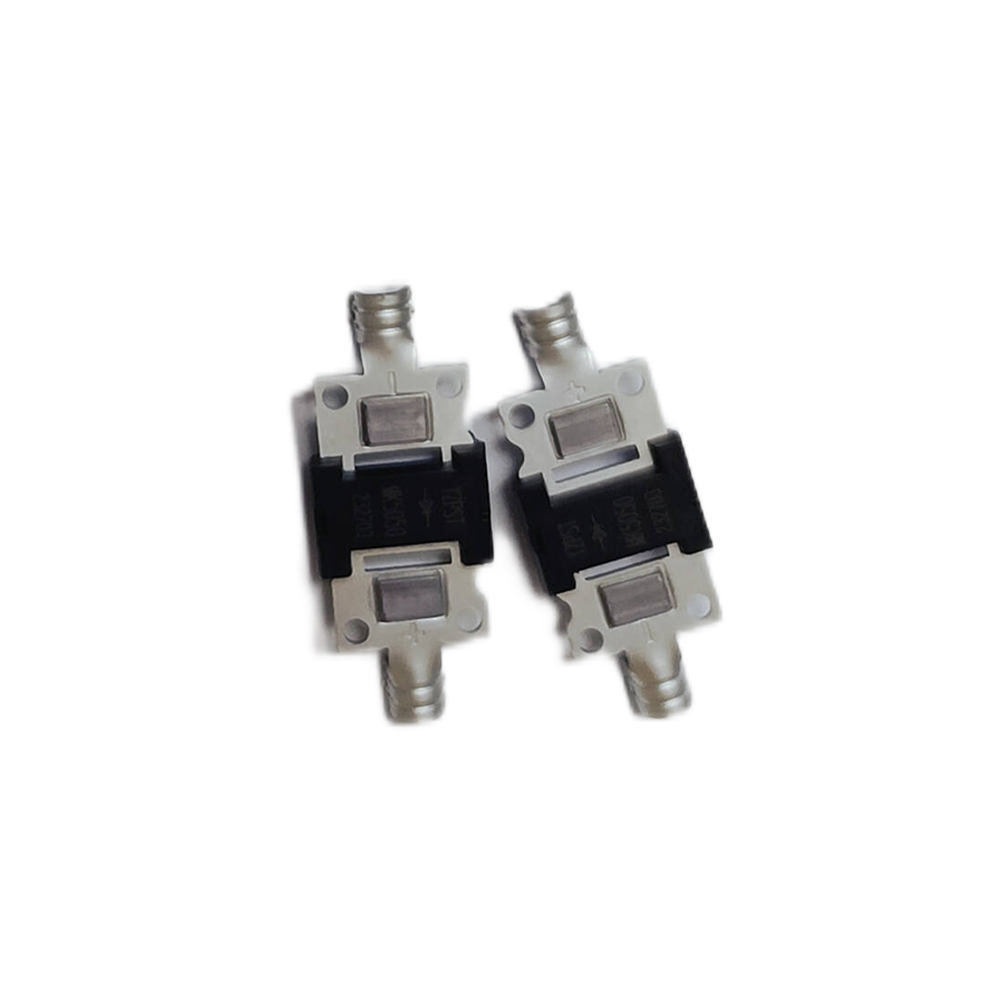

YZPST-MK5050

Photovoltaic Solar Cell Protection Schottky Rectifier

YZPST-S4050

FEATURES

● Low power loss

● Low forward voltage drop

● High forward surge capability

● High efficiency

TYPICAL APPLICATIONS

For use in solar cell junction box as a bypass diode for protection.

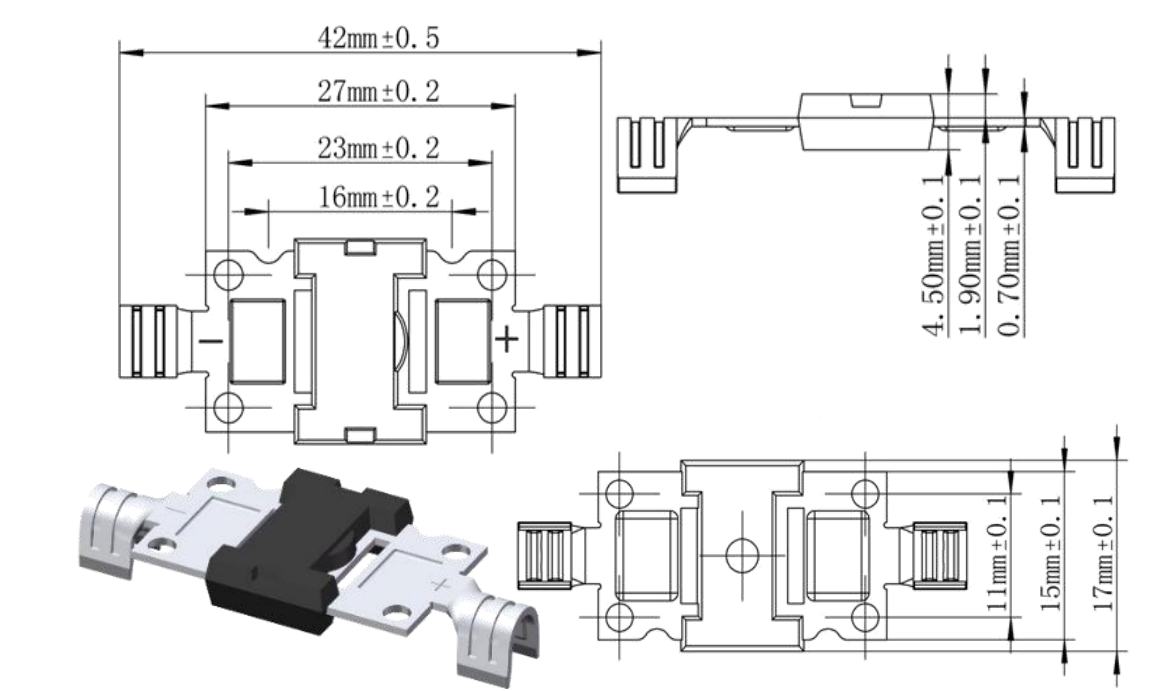

MECHANICAL DATA

Case: MJ-01： MJ-01

Molding compound meetsUL 94 V-0 flammability rating

UL 94 V-0

Terminals: Matte tin plated leads

Polarity: As marked on the body

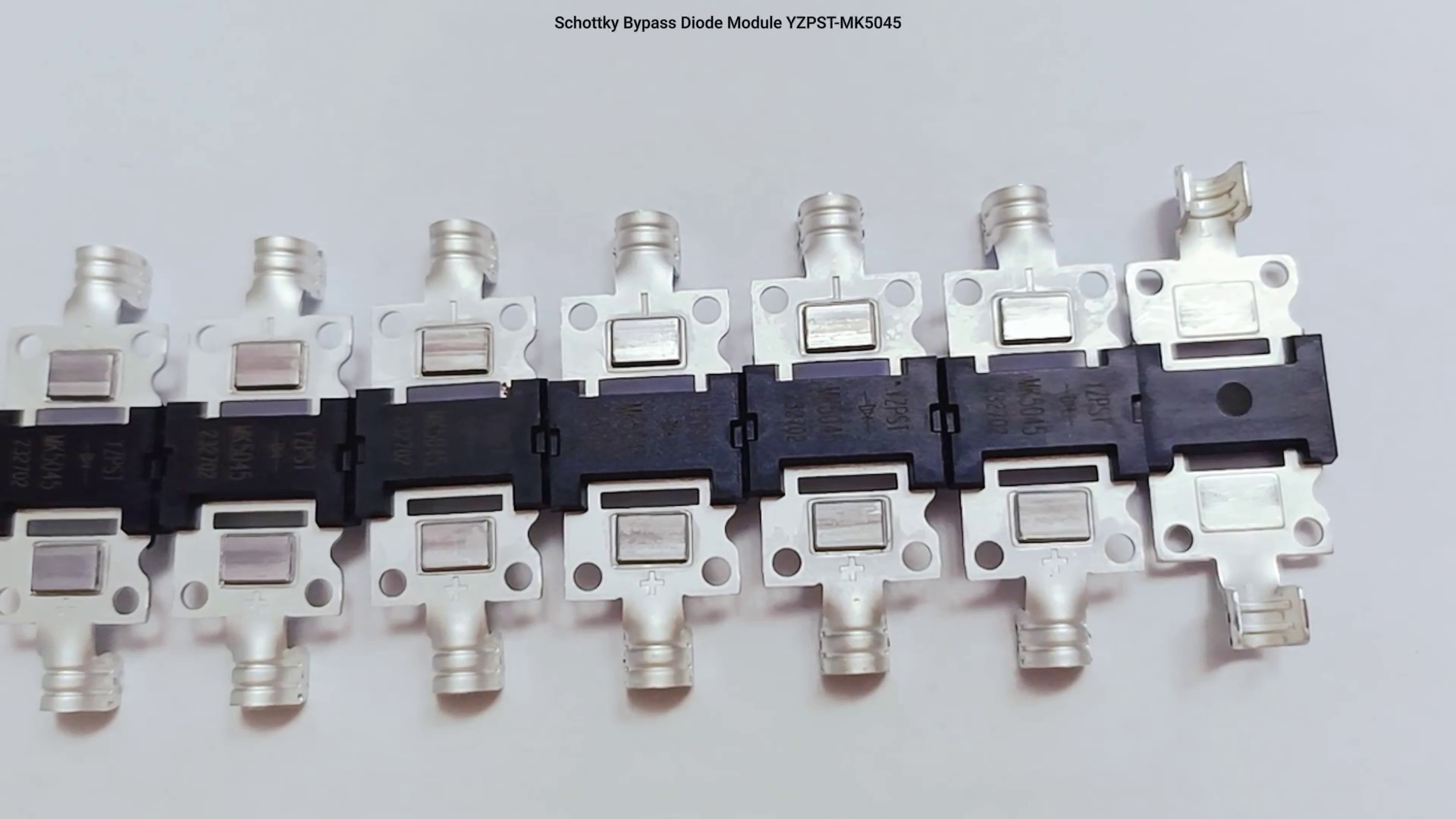

YZPST-MK5045

Email: info@yzpst.net

Tel: 008613805278321

Whatsapp: 8613805278321

YZPST-MK5050

YZPST-MK5045--I541--I447x.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

DESCRIPTION

Photovoltaic Solar Cell Protection Schottky Rectifier

YZPST-S4050

FEATURES

Low power loss
Low forward voltage drop
High forward surge capability
High efficiency

TYPICAL APPLICATIONS

For use in solar cell junction box as a bypass diode for protection.

MECHANICAL DATA

Case: MJ-01： MJ-01

Molding compound meetsUL 94 V-0 flammability rating

UL 94 V-0

Terminals: Matte tin plated leads

Polarity: As marked on the body

PRIMARY CHARACTERISTICS
IF(AV)	50 A
VRRM	45 V
VF	0.6 V

MAXIMUM RATING (TA = 25 ℃ unless otherwise noted）
PARAMETER	SYMBOL	MK5045	UNIT
Maximum repetitive peak reverse voltage	VRRM	45	V
Maximum RMS voltage	VRMS	31.5	V
Maximum DC blocking voltage	VDC	45	V
Maximum average forward rectified current	IF(AV)	50.0	A
Peak forward surge cuurent 8.3ms single half sine_wave superimposed on rated load @60Hz	IFSM	400	A
Operating junction temperature range	TJ	-55 to +200	℃
Storge temperature range	TSTG	-55 to +200	℃

ELECTRICAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted)
PARAMETER	TEST CONDITIONS	SYMBOL	MK5045	UNIT
Maximum instantaneous forward voltage	50.0 A	VF(1)	0.6	V
Maximum instantaneous reverse current at rated DC blocking voltage	TJ = 25 ℃		0.5
	TJ = 125 ℃	IR(1)	100	mA

Note

(1) Pulse test: 300us pulse width, 1% duty cycle 300us

THERMAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted)
PARAMETER	TEST CONDITIONS	SYMBOL	MK5045	UNIT
Typical thermal resistance	Junction to Case	RthJ-C	0.8	℃/W
