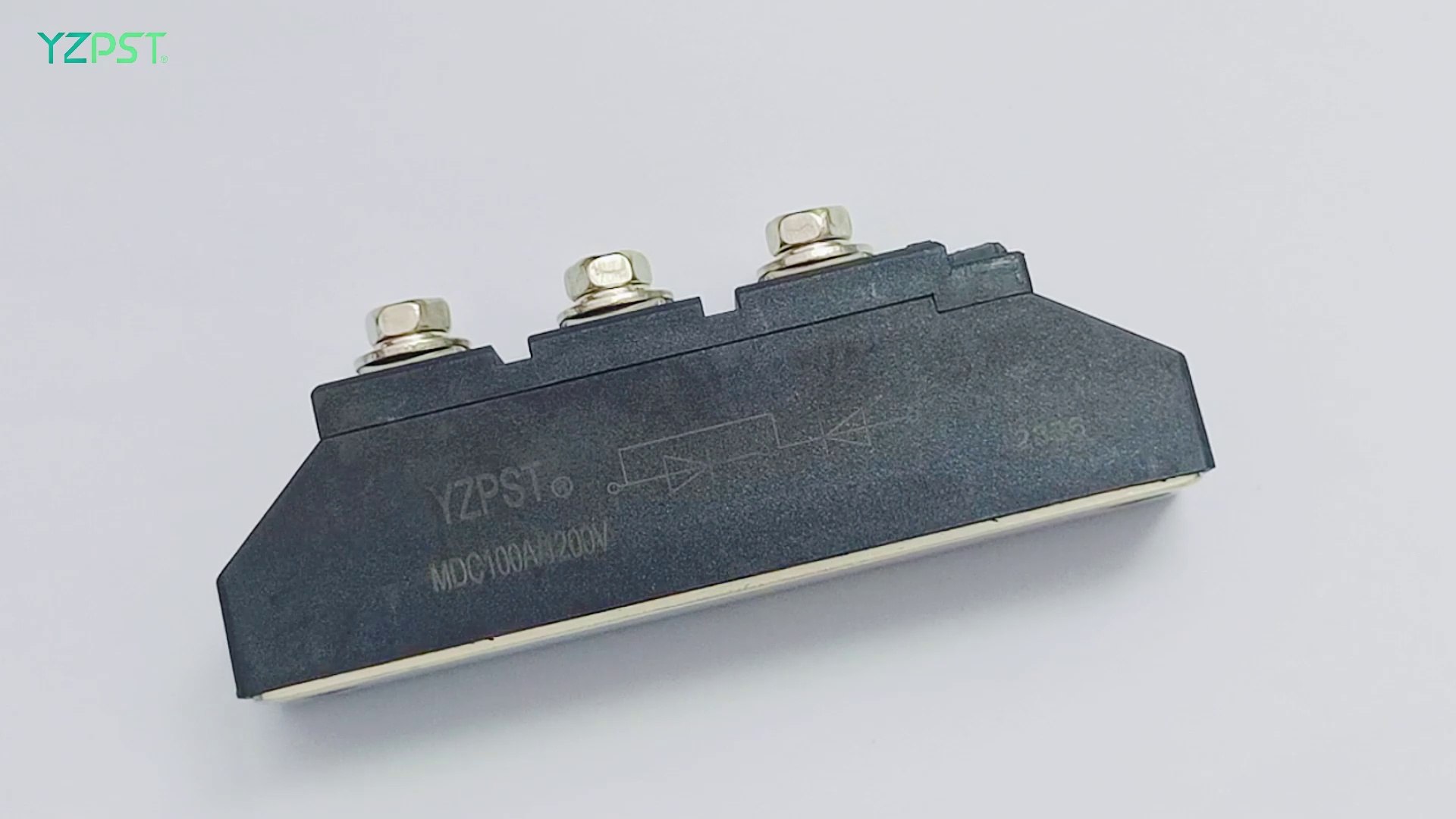

YZPST-MDC100A1200V
Rectifier Diode Modules
TYPE:MDC100A/1200V
Features
Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
Hard Soldered Joints For High Reliability
UL Recognized
Typical Applications
Rectifier for drives applications
Rectifiers for UBS
Battery chargers
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product description
Rectifier Diode Modules
TYPE:MDC100A/1200V
Features
Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
Hard Soldered Joints For High Reliability
UL Recognized
Typical Applications
Rectifier for drives applications
Rectifiers for UBS
Battery chargers
BLOCKING
| Symbol | Condition | Ratings | Unit |
| VRRM VRSM | 1200 | V | |
| 1300 | |||
| IRRM | 15 | mA | |
| VINS | 50Hz, circuit to base, all terminal shorted | 3600 | V |
CONDUCTING
| Symbol | Condition | Ratings | Unit |
| IF(AV) | TC=85°C; 180° sine | 100 | A |
| IF(RMS) | TC=85°C; 180° sine | 175 | A |
| IFSM | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 2000 | A |
| I2t | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 20 | kA2S |
| VF(TO) | (I > π x IF(AV)),Tj= Tj Max. | 0.85 | V |
| rF | (I > π x IF(AV)),Tj= Tj Max. | 1.3 | mΩ |
| VFM | On-State Current 300A，Tj=25°C | 1.35 | V |
Electrical Characteristics
| Symbol | Condition | Ratings | Unit |
| Rth(j-c) | Per Module | 0.175 | K/W |
| Rth(c-h) | Per Module | 0.1 | K/W |
| Tj | -40 ~ + 125 | °C | |
| Tstg | -40 ~ + 125 | °C | |
| M | mounting torque | 5 | Nm |
| terminal torque | 3 | Nm | |
| W | - | g |

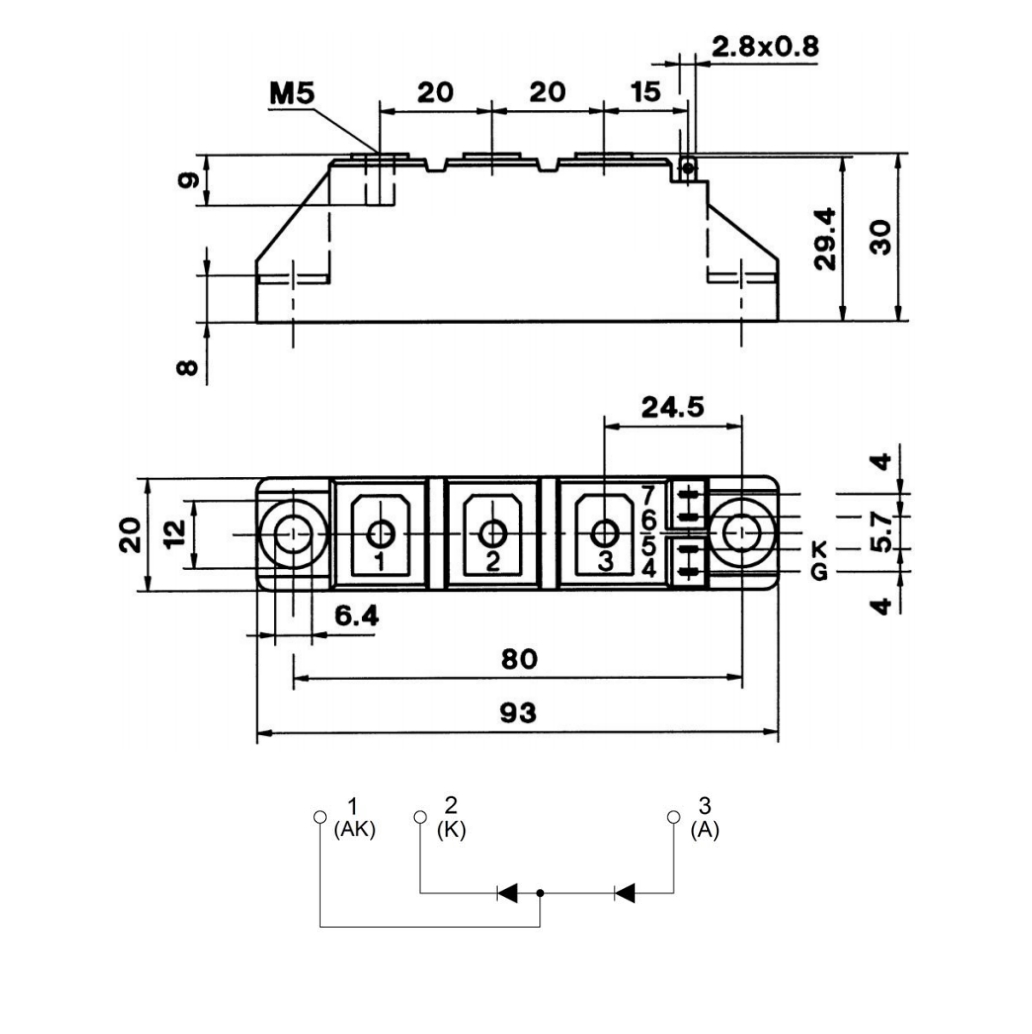

Outline Drawing
