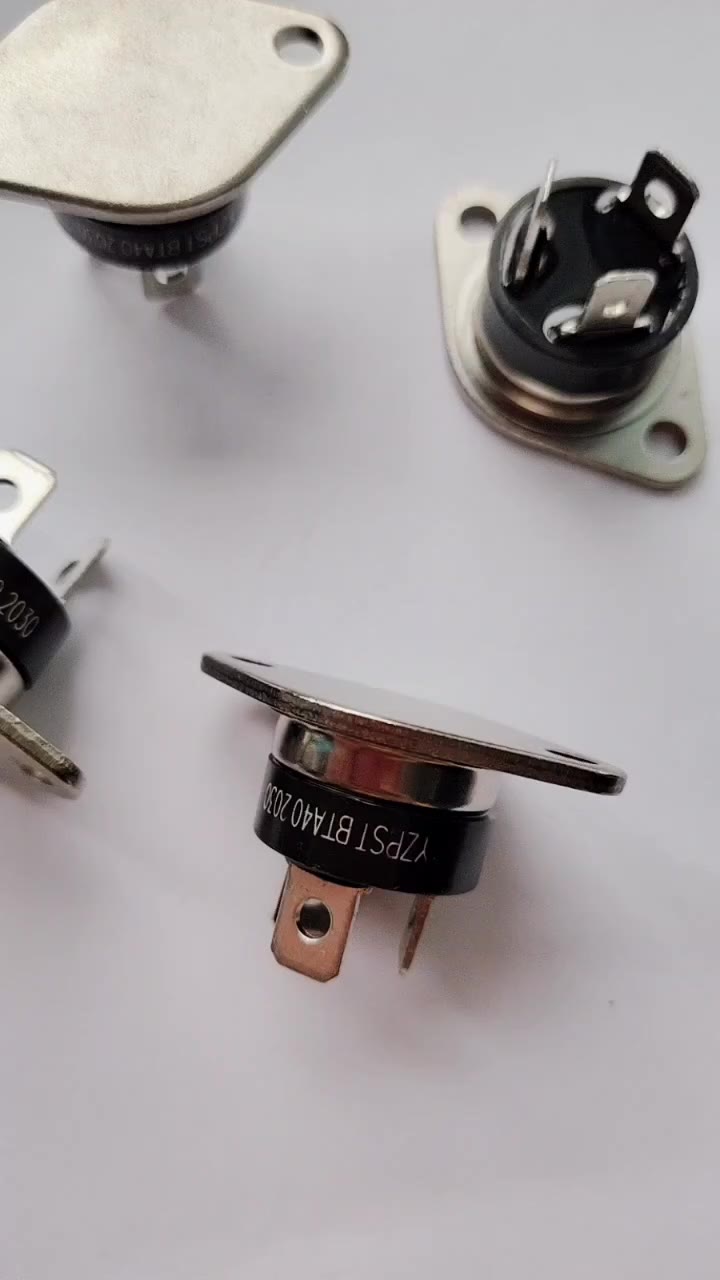

YZPST-BTA40
High commutation capability
Low thermal resistance with clip bonding

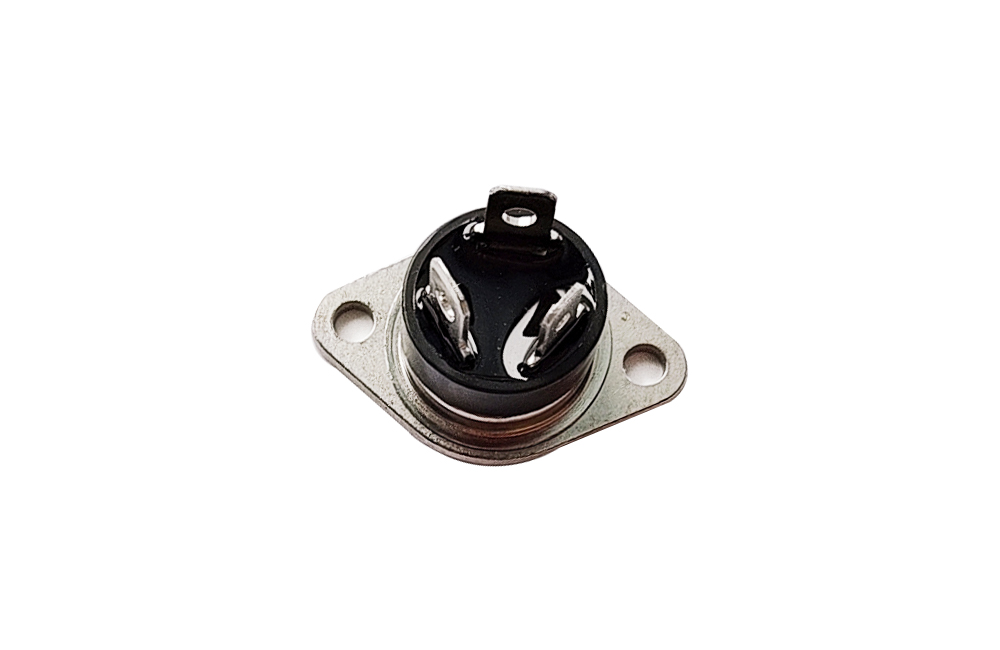

Insulated package RD91 high power:
-Low thermal resistance with clip bonding
-Insulated voltage: 2500 VRMS
| Symbol | Value | Unit |
|
IT(RMS) |
40 | A |
| VDRM /VRRM | 1000 | V |
|
VTM |
1.55 | V |
ABSOLUTE MAXIMUM RATINGS
|
Parameter |
Symbol |
Value |
Unit |
|
|
Storage junction temperature range |
Tstg |
-40-150 |
°C |
|
|
Operating junction temperature range |
Tj |
-40-125 |
°C |
|
|
Repetitive peak off-state voltage (Tj=25°C) |
Vdrm |
1000 |
V |
|
|
Repetitive peak reverse voltage (Tj=25°C) |
Vrrm |
1000 |
V |
|
|
Non repetitive surge peak Off-state voltage |
Vdsm |
Vdrm+100 |
V |
|
|
Non repetitive peak reverse voltage |
Vrsm |
Vrrm+100 |
V |
|
|
RMS on-state current |
RD91 (T =80°C) |
It(rms) |
40 |
A |
|
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
Itsm |
400 |
A |
|
|
l2t value for fusing (tp=10ms) |
l2t |
880 |
A2s |
|
|
Critical rate of rise of on-state current (Ig=2x|gt) |
dl/dt |
50 |
A/ps |
|
|
Peak gate current |
Igm |
4 |
A |
|
|
Average gate power dissipation |
Pg(av) |
1 |
W |
|
