150 Celsius max. Tj turn-off commutation high temperature 16A Triacs

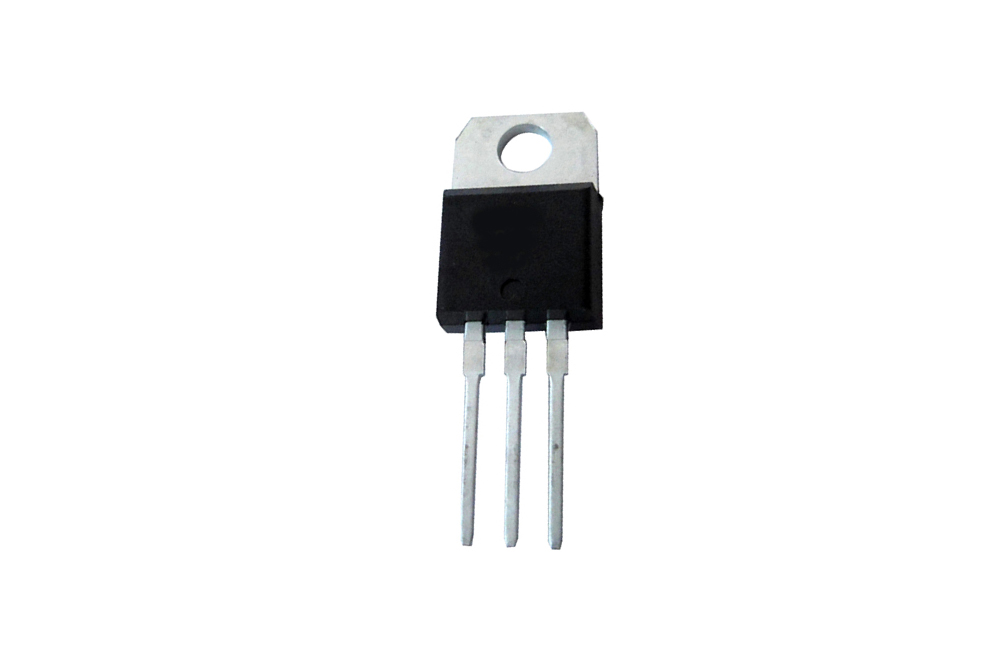

Triac: YZPST-T1650H
High temperature 16 A Triacs
High temperature 16 A Triacs
Features
-
Medium current Triac
-
150 °C max. Tj turn-off commutation
-
Low thermal resistance with clip bonding
-
Very high 3 quadrants commutation capability
-
Packages are RoHS (2002/95/EC) compliant
-
UL certified (ref. file E81734)
- Medium current Triac
- 150 °C max. Tj turn-off commutation
- Low thermal resistance with clip bonding
- Very high 3 quadrants commutation capability
- Packages are RoHS (2002/95/EC) compliant
- UL certified (ref. file E81734)
Applications
Especially designed to operate in high power
density or universal motor applications such as
vacuum cleaner and washing machine drum
motor, these 16 A Triacs provide a very high
switching capability up to junction temperatures of
150 °C.
The heatsink can be reduced, compared to
traditional Triacs, according to the high
performance at given junction temperatures.
Especially designed to operate in high power
density or universal motor applications such as
vacuum cleaner and washing machine drum
motor, these 16 A Triacs provide a very high
switching capability up to junction temperatures of
150 °C.
The heatsink can be reduced, compared to
traditional Triacs, according to the high
performance at given junction temperatures.
Description
Available in through-hole or surface mount
packages, the T1635H and T1650H Triac series
are suitable for general purpose mains power ac
switching.
By using an internal ceramic pad, the T16xxH-6I
provides voltage insulation (rated at 2500 V rms).
PACKAGES
Device summary
Symbol
Value
Unit
IT(RMS)
16
A
VDRM/VRRM
600
V
IGT
35 or 50
mA

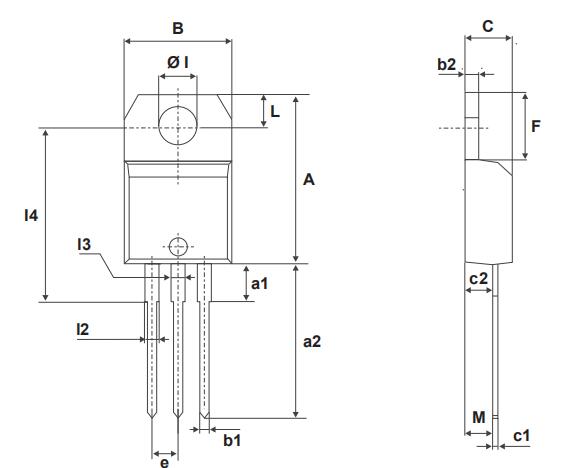

TO-220AB dimension definitions
Available in through-hole or surface mount
packages, the T1635H and T1650H Triac series
are suitable for general purpose mains power ac
switching.
By using an internal ceramic pad, the T16xxH-6I
provides voltage insulation (rated at 2500 V rms).
Device summary
|
Symbol
|
Value
|
Unit
|
|
IT(RMS)
|
16
|
A
|
|
VDRM/VRRM
|
600
|
V
|
|
IGT
|
35 or 50
|
mA
|
TO-220AB dimension definitions
